The new I-85 bridge: Step by step

Rebuilding a bridge might seem as simple as snapping the pieces together like an oversized Lego set. But it’s far more complicated. Since I-85 in Buckhead collapsed March 30, dozens of C.W. Matthews employees have worked 24 hours a day to demolish the old bridge and build the new one. State inspectors have been at their side, checking their work. Here’s a look at the bridge construction step by step.

Combined ShapeCaption

Credit: Richard Watkins

ajc.com

Credit: Richard Watkins

Combined ShapeCaption

Credit: Richard Watkins

Credit: Richard Watkins

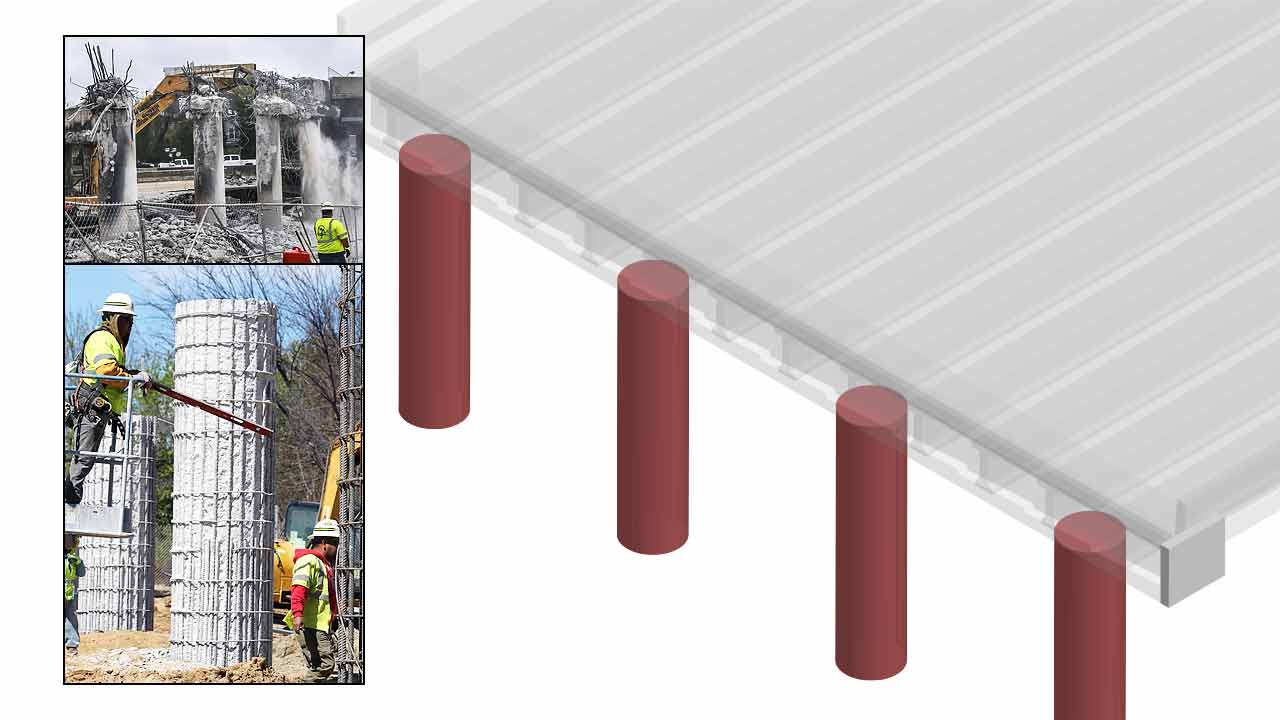

The foundation and 13 columns supporting the original bridge were still usable. The first step in building the new bridge was shoring up those original columns with more steel and concrete.

Combined ShapeCaption

ajc.com

Combined ShapeCaption

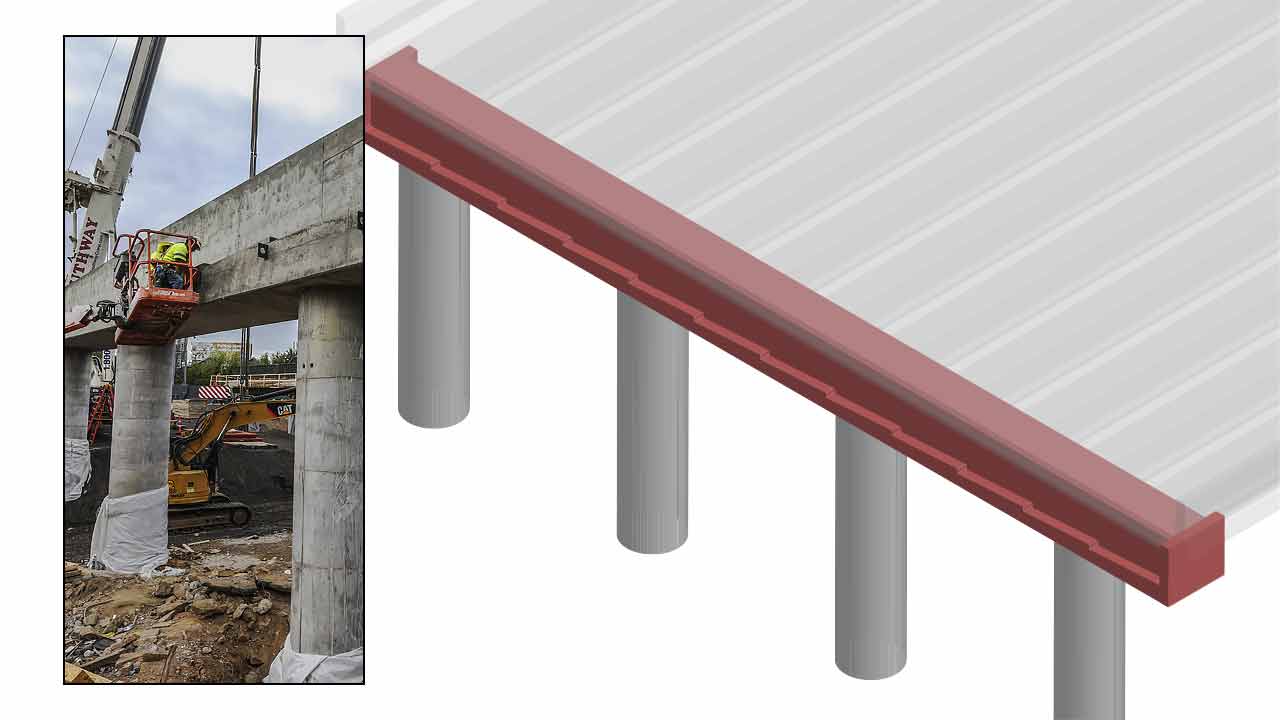

Next, workers placed reinforced concrete caps over the columns to support 61 concrete beams.

Combined ShapeCaption

ajc.com

Combined ShapeCaption

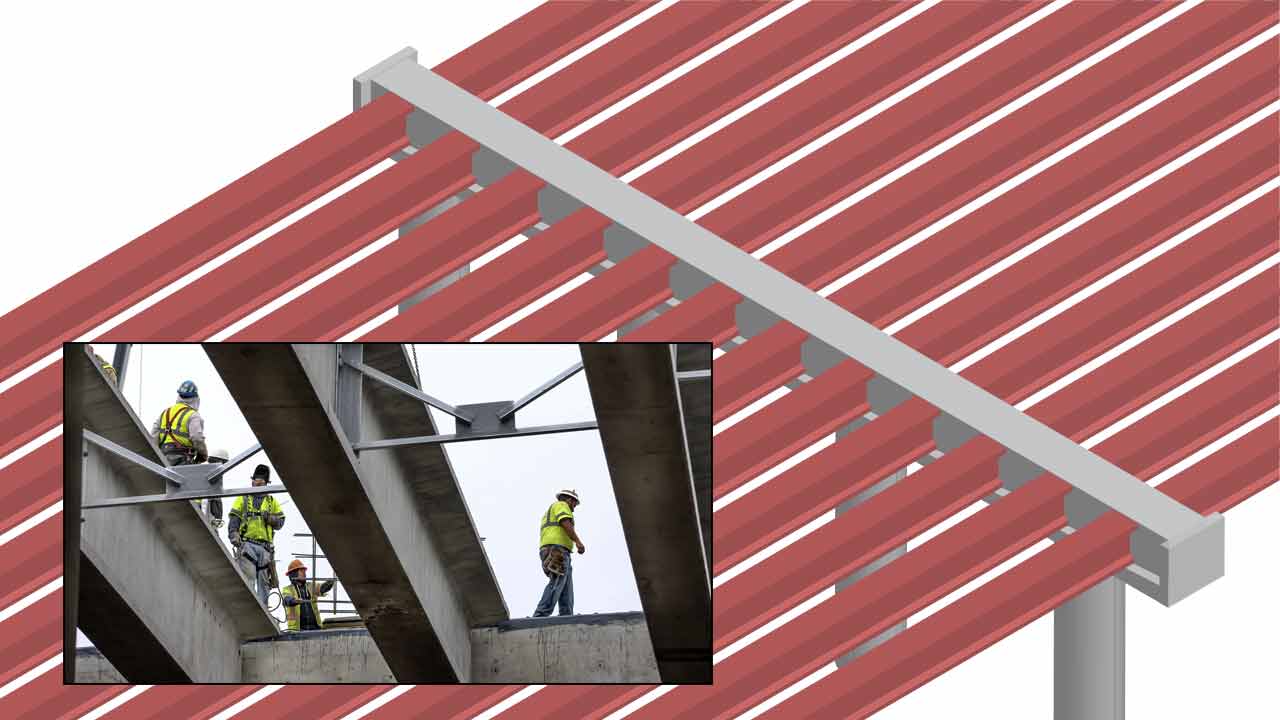

The beams – each weighing about 80,000 pounds – were laid on the caps and tied together for stability.

Combined ShapeCaption

Credit: Richard Watkins

ajc.com

Credit: Richard Watkins

Combined ShapeCaption

Credit: Richard Watkins

Credit: Richard Watkins

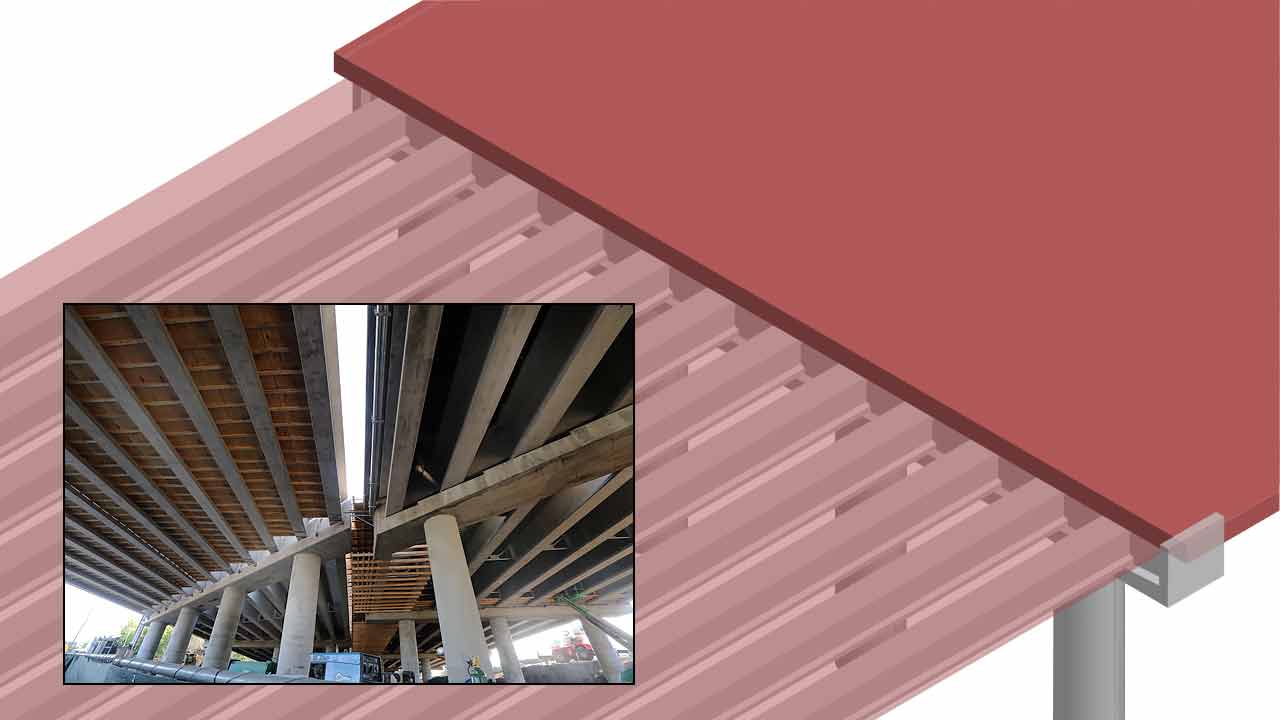

Metal forms were placed over the beams to hold the concrete of the bridge deck. C.W. Matthews then poured the concrete decks of the six bridge spans under construction. After the decks were poured, they were tested for smoothness and ground down if necessary. Then they were grooved to prevent them from becoming slick when it rains.

Combined ShapeCaption

ajc.com

Combined ShapeCaption

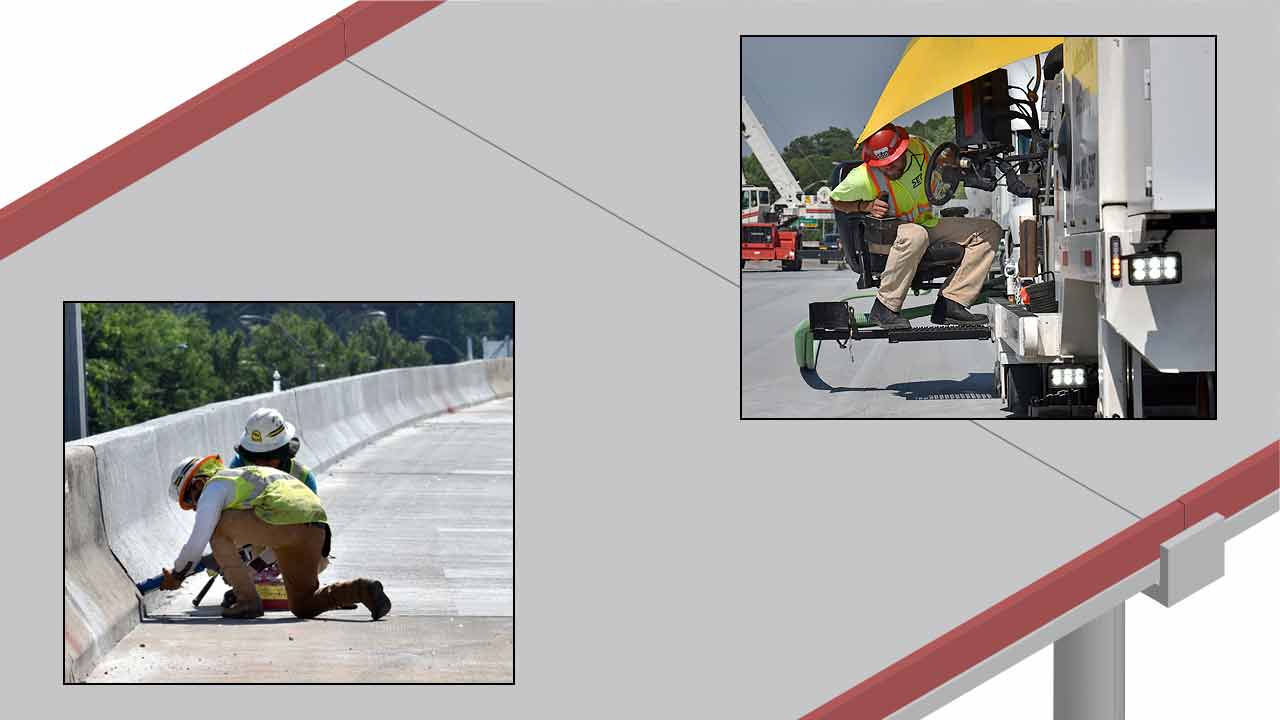

Finally, workers poured the concrete barrier walls on each side of the bridge deck and striped the new highway.
